pstsdk::disk::bt_page< T, EntryType > Struct Template Reference

The fundamental page structure which forms the basis of the two BTrees. More...

#include <disk.h>

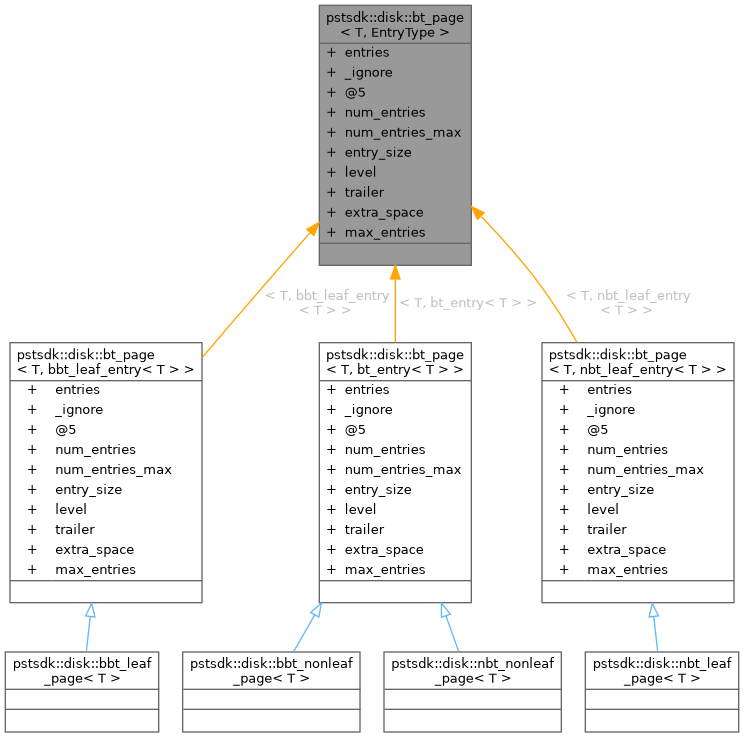

Inheritance diagram for pstsdk::disk::bt_page< T, EntryType >:

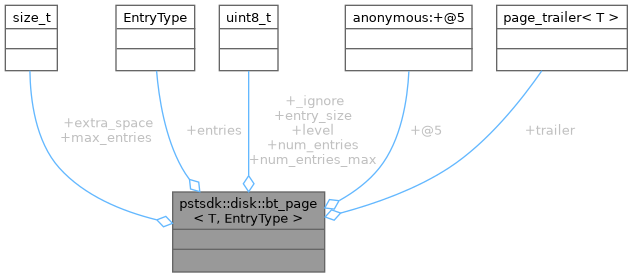

Collaboration diagram for pstsdk::disk::bt_page< T, EntryType >:

Public Attributes
union {
EntryType   entries [max_entries]
byte   _ignore [extra_space]
};
byte	num_entries
	Number of entries on this page.
byte	num_entries_max
	Maximum number of entries on this page.
byte	entry_size
	The size of each entry.
byte	level
	The level of this page. A level of zero indicates a leaf.
page_trailer< T >	trailer
	The page trailer.

Static Public Attributes
static const size_t	extra_space = page<T>::page_data_size - (sizeof(T) * sizeof(byte))
static const size_t	max_entries = extra_space / sizeof(EntryType)
	Maximum number of entries on a page.

Detailed Description

template<typename T, typename EntryType>
struct pstsdk::disk::bt_page< T, EntryType >

The fundamental page structure which forms the basis of the two BTrees.

Generally speaking, the generic form of a BTree page contains a fixed array of entries, followed by metadata about those entries and the page. The entry type (and entry size, and thus the max number of entries) varies between NBT and BBT pages.

Template Parameters

T	ulonglong for a unicode store, ulong for an ANSI store
EntryType	The type of entry on this page. In practice either a bbt_leaf_entry, nbt_leaf_entry, or bt_entry

See also

[MS-PST] 2.2.2.7.7.1

Definition at line 828 of file disk.h.

Member Data Documentation

[union]

union { ... } pstsdk::disk::bt_page< T, EntryType >

_ignore

template<typename T , typename EntryType >

byte pstsdk::disk::bt_page< T, EntryType >::_ignore[extra_space]

Definition at line 835 of file disk.h.

entries

template<typename T , typename EntryType >

EntryType pstsdk::disk::bt_page< T, EntryType >::entries[max_entries]

Definition at line 834 of file disk.h.

entry_size

template<typename T , typename EntryType >

byte pstsdk::disk::bt_page< T, EntryType >::entry_size

The size of each entry.

Definition at line 840 of file disk.h.

extra_space

template<typename T , typename EntryType >

const size_t pstsdk::disk::bt_page< T, EntryType >::extra_space = page<T>::page_data_size - (sizeof(T) * sizeof(byte))

static

Definition at line 830 of file disk.h.

level

template<typename T , typename EntryType >

byte pstsdk::disk::bt_page< T, EntryType >::level

The level of this page. A level of zero indicates a leaf.

Definition at line 841 of file disk.h.

max_entries

template<typename T , typename EntryType >

const size_t pstsdk::disk::bt_page< T, EntryType >::max_entries = extra_space / sizeof(EntryType)

static

Maximum number of entries on a page.

Definition at line 831 of file disk.h.

num_entries

template<typename T , typename EntryType >

byte pstsdk::disk::bt_page< T, EntryType >::num_entries

Number of entries on this page.

Definition at line 838 of file disk.h.

num_entries_max

template<typename T , typename EntryType >

byte pstsdk::disk::bt_page< T, EntryType >::num_entries_max

Maximum number of entries on this page.

Definition at line 839 of file disk.h.

trailer

template<typename T , typename EntryType >

page_trailer<T> pstsdk::disk::bt_page< T, EntryType >::trailer

The page trailer.

Definition at line 843 of file disk.h.

---

The documentation for this struct was generated from the following file:

• pstsdk/disk/disk.h
