pstsdk::disk::header< ulonglong > Struct Reference

The Unicode header structure. More...

#include <disk.h>

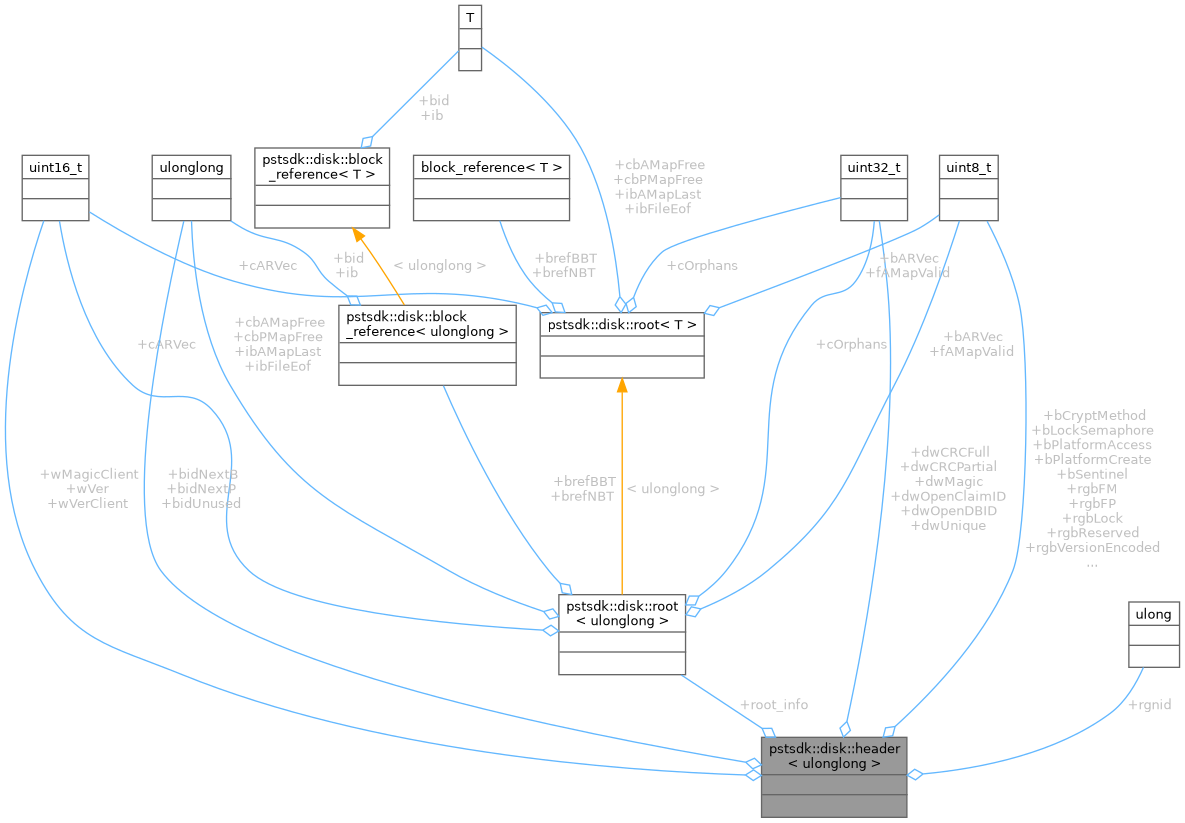

Collaboration diagram for pstsdk::disk::header< ulonglong >:

Public Types
typedef ulonglong	block_id_disk
	The id type used for blocks and pages in the file.
typedef ulonglong	location
	The location type used in the file.
typedef ulonglong	count
	The count type used in the file.

Public Attributes
ulong	dwMagic
	Always hlmagic.
ulong	dwCRCPartial
ushort	wMagicClient
	Client magic number, eg pst_magic.
ushort	wVer
	Version of the file, database_format.
ushort	wVerClient
	Client version, database_type.
byte	bPlatformCreate
	Always 0x1.
byte	bPlatformAccess
	Always 0x1.
ulong	dwOpenDBID
	Implementation specific.
ulong	dwOpenClaimID
	Implementation specific.
block_id_disk	bidUnused
	Unused.
block_id_disk	bidNextP
	The page id counter.
ulong	dwUnique
node_id	rgnid [nid_type_max]
	Array of node_id counters, one per node type.
root< ulonglong >	root_info
	The root info for this database.
byte	rgbFM [header_fmap_entries]
byte	rgbFP [header_fpmap_size]
byte	bSentinel
byte	bCryptMethod
	The crypt_method used in this file.
byte	rgbReserved [2]
	Unused.
block_id_disk	bidNextB
	The block id counter.
ulong	dwCRCFull
byte	rgbVersionEncoded [3]
byte	bLockSemaphore
	Implementation specific.
byte	rgbLock [header_lock_entries]
	Implementation specific.

Detailed Description

The Unicode header structure.

Located at offset zero, all parsing of a PST file begins with reading the header. Most important among the header fields is the root structure, which tells you the location of the NBT and BBT root pages.

See also

[MS-PST] 2.2.2.6

Definition at line 165 of file disk.h.

Member Typedef Documentation

block_id_disk

typedef ulonglong pstsdk::disk::header< ulonglong >::block_id_disk

The id type used for blocks and pages in the file.

Definition at line 167 of file disk.h.

count

typedef ulonglong pstsdk::disk::header< ulonglong >::count

The count type used in the file.

Definition at line 169 of file disk.h.

location

typedef ulonglong pstsdk::disk::header< ulonglong >::location

The location type used in the file.

Definition at line 168 of file disk.h.

Member Data Documentation

bCryptMethod

byte pstsdk::disk::header< ulonglong >::bCryptMethod

The crypt_method used in this file.

Definition at line 188 of file disk.h.

bidNextB

block_id_disk pstsdk::disk::header< ulonglong >::bidNextB

The block id counter.

Definition at line 195 of file disk.h.

bidNextP

block_id_disk pstsdk::disk::header< ulonglong >::bidNextP

The page id counter.

Definition at line 181 of file disk.h.

bidUnused

block_id_disk pstsdk::disk::header< ulonglong >::bidUnused

Unused.

Definition at line 180 of file disk.h.

bLockSemaphore

byte pstsdk::disk::header< ulonglong >::bLockSemaphore

Implementation specific.

Definition at line 200 of file disk.h.

bPlatformAccess

byte pstsdk::disk::header< ulonglong >::bPlatformAccess

Always 0x1.

Definition at line 177 of file disk.h.

bPlatformCreate

byte pstsdk::disk::header< ulonglong >::bPlatformCreate

Always 0x1.

Definition at line 176 of file disk.h.

bSentinel

byte pstsdk::disk::header< ulonglong >::bSentinel

Deprecated:

Sentinel byte indicating the end of the headers FPMap

Definition at line 187 of file disk.h.

dwCRCFull

ulong pstsdk::disk::header< ulonglong >::dwCRCFull

Definition at line 198 of file disk.h.

dwCRCPartial

ulong pstsdk::disk::header< ulonglong >::dwCRCPartial

Definition at line 172 of file disk.h.

dwMagic

ulong pstsdk::disk::header< ulonglong >::dwMagic

Always hlmagic.

Definition at line 171 of file disk.h.

dwOpenClaimID

ulong pstsdk::disk::header< ulonglong >::dwOpenClaimID

Implementation specific.

Definition at line 179 of file disk.h.

dwOpenDBID

ulong pstsdk::disk::header< ulonglong >::dwOpenDBID

Implementation specific.

Definition at line 178 of file disk.h.

dwUnique

ulong pstsdk::disk::header< ulonglong >::dwUnique

Definition at line 182 of file disk.h.

rgbFM

byte pstsdk::disk::header< ulonglong >::rgbFM[header_fmap_entries]

Deprecated:

The header's FMap entries

Definition at line 185 of file disk.h.

rgbFP

byte pstsdk::disk::header< ulonglong >::rgbFP[header_fpmap_size]

Deprecated:

The header's FPMap entries

Definition at line 186 of file disk.h.

rgbLock

byte pstsdk::disk::header< ulonglong >::rgbLock[header_lock_entries]

Implementation specific.

Definition at line 201 of file disk.h.

rgbReserved

byte pstsdk::disk::header< ulonglong >::rgbReserved[2]

Unused.

Definition at line 189 of file disk.h.

rgbVersionEncoded

byte pstsdk::disk::header< ulonglong >::rgbVersionEncoded[3]

Definition at line 199 of file disk.h.

rgnid

node_id pstsdk::disk::header< ulonglong >::rgnid[nid_type_max]

Array of node_id counters, one per node type.

Definition at line 183 of file disk.h.

root_info

root<ulonglong> pstsdk::disk::header< ulonglong >::root_info

The root info for this database.

Definition at line 184 of file disk.h.

wMagicClient

ushort pstsdk::disk::header< ulonglong >::wMagicClient

Client magic number, eg pst_magic.

Definition at line 173 of file disk.h.

wVer

ushort pstsdk::disk::header< ulonglong >::wVer

Version of the file, database_format.

Definition at line 174 of file disk.h.

wVerClient

ushort pstsdk::disk::header< ulonglong >::wVerClient

Client version, database_type.

Definition at line 175 of file disk.h.

---

The documentation for this struct was generated from the following file:

• pstsdk/disk/disk.h
