The object which forms the root of the BTH hierarchy. More...

#include <heap.h>

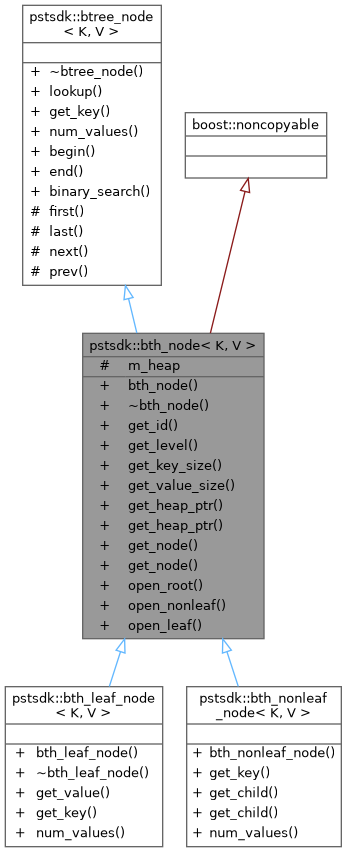

Inheritance diagram for pstsdk::bth_node< K, V >:

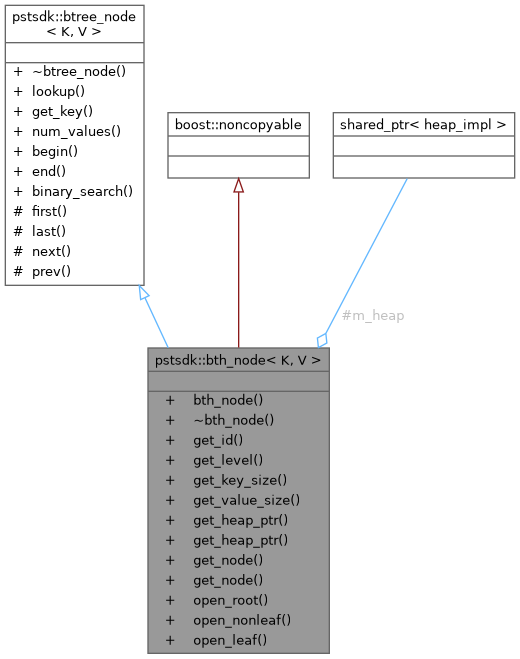

Collaboration diagram for pstsdk::bth_node< K, V >:

Public Member Functions
	bth_node (const heap_ptr &h, heap_id id, ushort level)
	Construct a bth_node object.

virtual	~bth_node ()

heap_id	get_id () const
	Return the heap_id of this bth_node.

ushort	get_level () const
	Return the leve of this bth_node.

size_t	get_key_size () const
	Return the key size of this bth.

size_t	get_value_size () const
	Return the value size of this bth.

const heap_ptr	get_heap_ptr () const
	Returns the heap this bth_node is in.

heap_ptr	get_heap_ptr ()
	Returns the heap this bth_node is in.

const node &	get_node () const
	Get the node underlying this BTH.

node &	get_node ()
	Get the node underlying this BTH.

Public Member Functions inherited from pstsdk::btree_node< K, V >
virtual	~btree_node ()

virtual const V &	lookup (const K &key) const =0
	Looks up the associated value for a given key.

virtual const K &	get_key (uint pos) const =0
	Returns the key at the specified position.

virtual uint	num_values () const =0
	Returns the number of entries in this btree_node.

const_iterator	begin () const
	Returns a STL style iterator positioned at the first entry.

const_iterator	end () const
	Returns a STL style iterator positioned at the "end" entry.

int	binary_search (const K &key) const
	Performs a binary search over the keys of this btree_node.

Static Public Member Functions
static std::shared_ptr< bth_node< K, V > >	open_root (const heap_ptr &h, heap_id bth_root)
	Opens a BTH node from the specified heap at the given root.

static std::shared_ptr< bth_nonleaf_node< K, V > >	open_nonleaf (const heap_ptr &h, heap_id id, ushort level)
	Open a non-leaf BTH node.

static std::shared_ptr< bth_leaf_node< K, V > >	open_leaf (const heap_ptr &h, heap_id id)
	Open a leaf BTH node.

Protected Attributes
heap_ptr	m_heap

Additional Inherited Members
Public Types inherited from pstsdk::btree_node< K, V >
typedef const_btree_node_iter< K, V >	const_iterator

Protected Member Functions inherited from pstsdk::btree_node< K, V >
virtual void	first (btree_iter_impl< K, V > &iter) const =0
	Positions the iterator at the first element on this tree.

virtual void	last (btree_iter_impl< K, V > &iter) const =0
	Positions the iterator at the "end" element.

virtual void	next (btree_iter_impl< K, V > &iter) const =0
	Moves the iterator to the next element.

virtual void	prev (btree_iter_impl< K, V > &iter) const =0
	Moves the iterator to the previous element.

Detailed Description

template<typename K, typename V>
class pstsdk::bth_node< K, V >

The object which forms the root of the BTH hierarchy.

A BTH is a simple tree structure built using allocations out of a heap. bth_node forms the root of the object hierarchy representing this tree. The child classes bth_nonleaf_node and bth_leaf_node contain the implementation and represent nonleaf and leaf bth_nodes, respectively.

Because a single bth_node is backed by a HN allocation (max 3.8k), most BTH "trees" consist of a BTH header which points directly to a single BTH leaf node.

This hierarchy also models the btree_node structure, inheriting the actual iteration and lookup logic.

Template Parameters

K	The key type for this BTH
V	The value type for this BTH

See also: [MS-PST] 2.3.2

Definition at line 291 of file heap.h.

Constructor & Destructor Documentation

◆ bth_node()

template<typename K , typename V >

pstsdk::bth_node< K, V >::bth_node	(	const heap_ptr &	h,
		heap_id	id,
		ushort	level
	)

inline

Construct a bth_node object.

Parameters

[in]	h	The heap to open out of
[in]	id	The id to interpret as a non-leaf BTH node
[in]	level	The level of this non-leaf node (must be non-zero)

Definition at line 316 of file heap.h.

◆ ~bth_node()

template<typename K , typename V >

virtual pstsdk::bth_node< K, V >::~bth_node ( )

inlinevirtual

Definition at line 318 of file heap.h.

Member Function Documentation

◆ get_heap_ptr() [1/2]

template<typename K , typename V >

heap_ptr pstsdk::bth_node< K, V >::get_heap_ptr ( )

inline

Returns the heap this bth_node is in.

The heap this bth_node is in

Definition at line 338 of file heap.h.

◆ get_heap_ptr() [2/2]

template<typename K , typename V >

const heap_ptr pstsdk::bth_node< K, V >::get_heap_ptr ( ) const

inline

Returns the heap this bth_node is in.

The heap this bth_node is in

Definition at line 335 of file heap.h.

◆ get_id()

template<typename K , typename V >

heap_id pstsdk::bth_node< K, V >::get_id ( ) const

inline

Return the heap_id of this bth_node.

Returns: the heap_id of this bth_node

Definition at line 322 of file heap.h.

◆ get_key_size()

template<typename K , typename V >

size_t pstsdk::bth_node< K, V >::get_key_size ( ) const

inline

Return the key size of this bth.

Returns: the key size of this bth

Definition at line 328 of file heap.h.

◆ get_level()

template<typename K , typename V >

ushort pstsdk::bth_node< K, V >::get_level ( ) const

inline

Return the leve of this bth_node.

Returns: the leve of this bth_node

Definition at line 325 of file heap.h.

◆ get_node() [1/2]

template<typename K , typename V >

node & pstsdk::bth_node< K, V >::get_node ( )

inline

Get the node underlying this BTH.

Returns: the node

Definition at line 345 of file heap.h.

◆ get_node() [2/2]

template<typename K , typename V >

const node & pstsdk::bth_node< K, V >::get_node ( ) const

inline

Get the node underlying this BTH.

Returns: the node

Definition at line 342 of file heap.h.

◆ get_value_size()

template<typename K , typename V >

size_t pstsdk::bth_node< K, V >::get_value_size ( ) const

inline

Return the value size of this bth.

Returns: the value size of this bth

Definition at line 331 of file heap.h.

◆ open_leaf()

template<typename K , typename V >

std::shared_ptr< pstsdk::bth_leaf_node< K, V > > pstsdk::bth_node< K, V >::open_leaf	(	const heap_ptr &	h,
		heap_id	id
	)

inlinestatic

Open a leaf BTH node.

Parameters

[in]	h	The heap to open out of
[in]	id	The id to interpret as a leaf BTH node

Definition at line 479 of file heap.h.

◆ open_nonleaf()

template<typename K , typename V >

std::shared_ptr< pstsdk::bth_nonleaf_node< K, V > > pstsdk::bth_node< K, V >::open_nonleaf	(	const heap_ptr &	h,
		heap_id	id,
		ushort	level
	)

inlinestatic

Open a non-leaf BTH node.

Parameters

[in]	h	The heap to open out of
[in]	id	The id to interpret as a non-leaf BTH node
[in]	level	The level of this non-leaf node (must be non-zero)

Definition at line 455 of file heap.h.

◆ open_root()

template<typename K , typename V >

std::shared_ptr< pstsdk::bth_node< K, V > > pstsdk::bth_node< K, V >::open_root	(	const heap_ptr &	h,
		heap_id	bth_root
	)

inlinestatic

Opens a BTH node from the specified heap at the given root.

Exceptions

sig_mismatch	(PSTSDK_VALIDATION_LEVEL_WEAK) If this allocation doesn't have the BTH stamp
logic_error	If the specified key/value type sizes do not match what is in the BTH header

Parameters

[in]	h	The heap to open out of
[in]	bth_root	The allocation containing the bth header

Definition at line 429 of file heap.h.

Member Data Documentation

◆ m_heap

template<typename K , typename V >

heap_ptr pstsdk::bth_node< K, V >::m_heap

protected

Definition at line 348 of file heap.h.

The documentation for this class was generated from the following file:

pstsdk/ltp/heap.h
