Contains references to other bth_node allocations. More...

#include <heap.h>

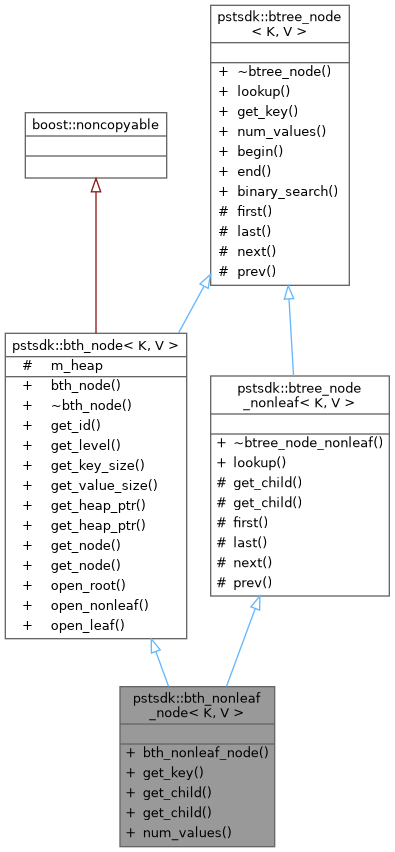

Inheritance diagram for pstsdk::bth_nonleaf_node< K, V >:

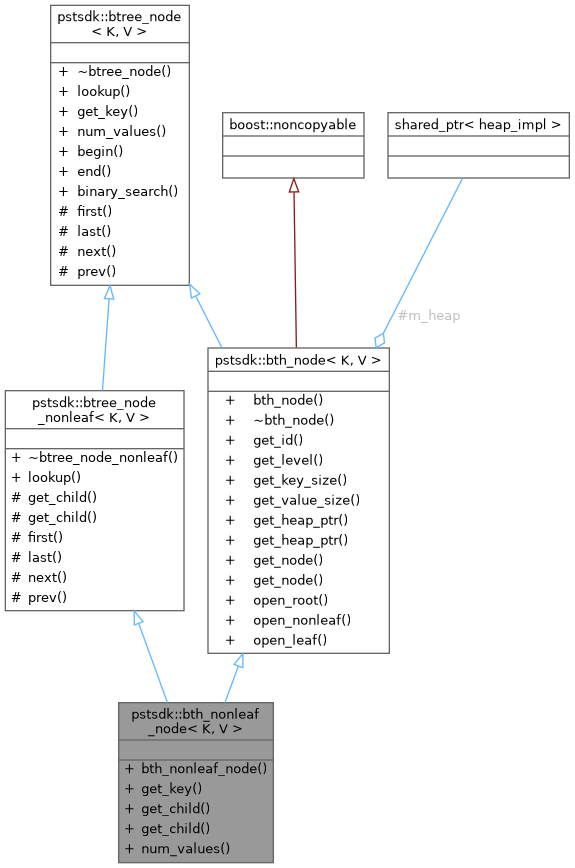

Collaboration diagram for pstsdk::bth_nonleaf_node< K, V >:

Public Member Functions
	bth_nonleaf_node (const heap_ptr &h, heap_id id, ushort level, std::vector< std::pair< K, heap_id > > bth_info)
	Construct a bth_nonleaf_node.

const K &	get_key (uint pos) const
	Returns the key at the specified position.

bth_node< K, V > *	get_child (uint pos)
	Returns the child btree_node at the requested location.

const bth_node< K, V > *	get_child (uint pos) const
	Returns the child btree_node at the requested location.

uint	num_values () const
	Returns the number of entries in this btree_node.

Public Member Functions inherited from pstsdk::bth_node< K, V >
	bth_node (const heap_ptr &h, heap_id id, ushort level)
	Construct a bth_node object.

virtual	~bth_node ()

heap_id	get_id () const
	Return the heap_id of this bth_node.

ushort	get_level () const
	Return the leve of this bth_node.

size_t	get_key_size () const
	Return the key size of this bth.

size_t	get_value_size () const
	Return the value size of this bth.

const heap_ptr	get_heap_ptr () const
	Returns the heap this bth_node is in.

heap_ptr	get_heap_ptr ()
	Returns the heap this bth_node is in.

const node &	get_node () const
	Get the node underlying this BTH.

node &	get_node ()
	Get the node underlying this BTH.

Public Member Functions inherited from pstsdk::btree_node< K, V >
virtual	~btree_node ()

const_iterator	begin () const
	Returns a STL style iterator positioned at the first entry.

const_iterator	end () const
	Returns a STL style iterator positioned at the "end" entry.

int	binary_search (const K &key) const
	Performs a binary search over the keys of this btree_node.

Public Member Functions inherited from pstsdk::btree_node_nonleaf< K, V >
virtual	~btree_node_nonleaf ()

const V &	lookup (const K &key) const
	Looks up the associated value for a given key.

Additional Inherited Members
Public Types inherited from pstsdk::btree_node< K, V >
typedef const_btree_node_iter< K, V >	const_iterator

Static Public Member Functions inherited from pstsdk::bth_node< K, V >
static std::shared_ptr< bth_node< K, V > >	open_root (const heap_ptr &h, heap_id bth_root)
	Opens a BTH node from the specified heap at the given root.

static std::shared_ptr< bth_nonleaf_node< K, V > >	open_nonleaf (const heap_ptr &h, heap_id id, ushort level)
	Open a non-leaf BTH node.

static std::shared_ptr< bth_leaf_node< K, V > >	open_leaf (const heap_ptr &h, heap_id id)
	Open a leaf BTH node.

Protected Member Functions inherited from pstsdk::btree_node_nonleaf< K, V >
void	first (btree_iter_impl< K, V > &iter) const
	Positions the iterator at the first element on this tree.

void	last (btree_iter_impl< K, V > &iter) const
	Positions the iterator at the "end" element.

void	next (btree_iter_impl< K, V > &iter) const
	Moves the iterator to the next element.

void	prev (btree_iter_impl< K, V > &iter) const
	Moves the iterator to the previous element.

Protected Attributes inherited from pstsdk::bth_node< K, V >
heap_ptr	m_heap

Detailed Description

template<typename K, typename V>
class pstsdk::bth_nonleaf_node< K, V >

Contains references to other bth_node allocations.

Template Parameters

K	The key type for this BTH
V	The value type for this BTH

See also: [MS-PST] 2.3.2.2

Definition at line 361 of file heap.h.

Constructor & Destructor Documentation

◆ bth_nonleaf_node()

template<typename K , typename V >

pstsdk::bth_nonleaf_node< K, V >::bth_nonleaf_node	(	const heap_ptr &	h,
		heap_id	id,
		ushort	level,
		std::vector< std::pair< K, heap_id > >	bth_info
	)

inline

Construct a bth_nonleaf_node.

Parameters

[in]	h	The heap to open out of
[in]	id	The id to interpret as a non-leaf BTH node
[in]	level	The level of this bth_nonleaf_node (non-zero)
[in]	bth_info	The info about child bth_node allocations

Definition at line 372 of file heap.h.

Member Function Documentation

◆ get_child() [1/2]

template<typename K , typename V >

pstsdk::bth_node< K, V > * pstsdk::bth_nonleaf_node< K, V >::get_child ( uint i )

inlinevirtual

Returns the child btree_node at the requested location.

Parameters

[in] i The position at which to get the child

Returns: a non-owning pointer of the child btree_node

Implements pstsdk::btree_node_nonleaf< K, V >.

Definition at line 511 of file heap.h.

◆ get_child() [2/2]

template<typename K , typename V >

const pstsdk::bth_node< K, V > * pstsdk::bth_nonleaf_node< K, V >::get_child ( uint i ) const

inlinevirtual

Returns the child btree_node at the requested location.

Parameters

[in] i The position at which to get the child

Returns: a non-owning pointer of the child btree_node

Implements pstsdk::btree_node_nonleaf< K, V >.

Definition at line 525 of file heap.h.

◆ get_key()

template<typename K , typename V >

const K & pstsdk::bth_nonleaf_node< K, V >::get_key ( uint pos ) const

inlinevirtual

Returns the key at the specified position.

This is specific to this btree_node, not the entire tree

Parameters

[in] pos The position to retrieve the key for

Returns: The key at the requested position

Implements pstsdk::btree_node< K, V >.

Definition at line 379 of file heap.h.

◆ num_values()

template<typename K , typename V >

uint pstsdk::bth_nonleaf_node< K, V >::num_values ( ) const

inlinevirtual

Returns the number of entries in this btree_node.

This is specific to this btree_node, not the entire tree

Returns: The number of keys in this btree_node

Implements pstsdk::btree_node< K, V >.

Definition at line 382 of file heap.h.

The documentation for this class was generated from the following file:

pstsdk/ltp/heap.h
