pstsdk::btree_node_leaf< K, V > Class Template Reference

Represents a leaf node in a BTree structure. More...

#include <btree.h>

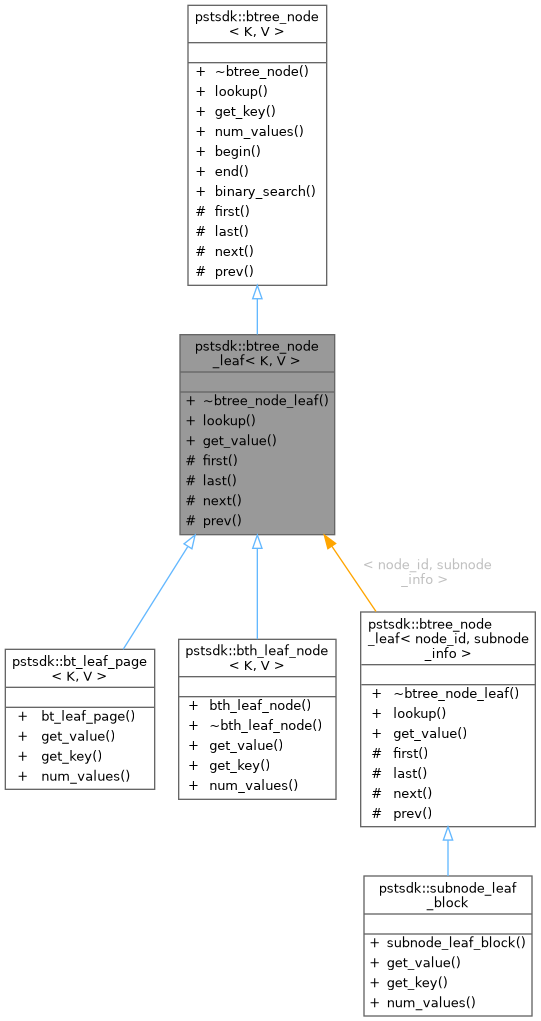

Inheritance diagram for pstsdk::btree_node_leaf< K, V >:

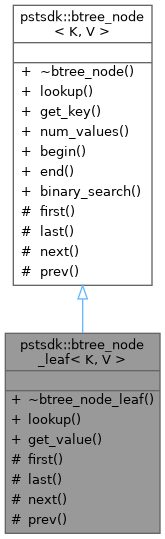

Collaboration diagram for pstsdk::btree_node_leaf< K, V >:

Public Member Functions
virtual	~btree_node_leaf ()
const V &	lookup (const K &key) const
	Looks up the associated value for a given key.
virtual const V &	get_value (uint pos) const =0
	Returns the value at the associated position on this leaf node.
Public Member Functions inherited from pstsdk::btree_node< K, V >
virtual	~btree_node ()
virtual const K &	get_key (uint pos) const =0
	Returns the key at the specified position.
virtual uint	num_values () const =0
	Returns the number of entries in this btree_node.
const_iterator	begin () const
	Returns a STL style iterator positioned at the first entry.
const_iterator	end () const
	Returns a STL style iterator positioned at the "end" entry.
int	binary_search (const K &key) const
	Performs a binary search over the keys of this btree_node.

Protected Member Functions
void	first (btree_iter_impl< K, V > &iter) const
	Positions the iterator at the first element on this tree.
void	last (btree_iter_impl< K, V > &iter) const
	Positions the iterator at the "end" element.
void	next (btree_iter_impl< K, V > &iter) const
	Moves the iterator to the next element.
void	prev (btree_iter_impl< K, V > &iter) const
	Moves the iterator to the previous element.

Friends
class	const_btree_node_iter< K, V >

Additional Inherited Members
Public Types inherited from pstsdk::btree_node< K, V >
typedef const_btree_node_iter< K, V >	const_iterator

Detailed Description

template<typename K, typename V>
class pstsdk::btree_node_leaf< K, V >

Represents a leaf node in a BTree structure.

Classes which model a leaf of a BTree structure inherit from this. They have a total of three simple virtual functions to implement:

• num_values, from btree_node
• get_key(uint pos), from btree_node
• get_value(uint pos)

  Parameters

  K	The key type. Must be LessThan comparable.
  V	The value type

Definition at line 131 of file btree.h.

Constructor & Destructor Documentation

~btree_node_leaf()

template<typename K , typename V >

virtual pstsdk::btree_node_leaf< K, V >::~btree_node_leaf ( )

inlinevirtual

Definition at line 134 of file btree.h.

Member Function Documentation

first()

template<typename K , typename V >

void pstsdk::btree_node_leaf< K, V >::first ( btree_iter_impl< K, V > &  iter ) const

inlineprotectedvirtual

Positions the iterator at the first element on this tree.

Parameters

[in,out]

iter

Iterator state class

Implements pstsdk::btree_node< K, V >.

Definition at line 151 of file btree.h.

get_value()

template<typename K , typename V >

virtual const V & pstsdk::btree_node_leaf< K, V >::get_value ( uint  pos ) const

pure virtual

Returns the value at the associated position on this leaf node.

Parameters

[in]

pos

The position to retrieve the value for

Returns

The value at the requested position

Implemented in pstsdk::bth_leaf_node< K, V >, pstsdk::subnode_leaf_block, and pstsdk::bt_leaf_page< K, V >.

last()

template<typename K , typename V >

void pstsdk::btree_node_leaf< K, V >::last ( btree_iter_impl< K, V > &  iter ) const

inlineprotectedvirtual

Positions the iterator at the "end" element.

Parameters

[in,out]

iter

Iterator state class

Implements pstsdk::btree_node< K, V >.

Definition at line 153 of file btree.h.

lookup()

template<typename K , typename V >

const V & pstsdk::btree_node_leaf< K, V >::lookup ( const K &  key ) const

virtual

Looks up the associated value for a given key.

Exceptions

key_not_found<K>

if the requested key is not in this btree

Parameters

[in]

key

The key to lookup

Returns

The associated value

Implements pstsdk::btree_node< K, V >.

Definition at line 292 of file btree.h.

next()

template<typename K , typename V >

void pstsdk::btree_node_leaf< K, V >::next ( btree_iter_impl< K, V > &  iter ) const

protectedvirtual

Moves the iterator to the next element.

Parameters

[in,out]

iter

Iterator state class

Implements pstsdk::btree_node< K, V >.

Definition at line 306 of file btree.h.

prev()

template<typename K , typename V >

void pstsdk::btree_node_leaf< K, V >::prev ( btree_iter_impl< K, V > &  iter ) const

protectedvirtual

Moves the iterator to the previous element.

Parameters

[in,out]

iter

Iterator state class

Implements pstsdk::btree_node< K, V >.

Definition at line 330 of file btree.h.

Friends And Related Symbol Documentation

const_btree_node_iter< K, V >

template<typename K , typename V >

friend class const_btree_node_iter< K, V >

friend

Definition at line 145 of file btree.h.

---

The documentation for this class was generated from the following file:

• pstsdk/util/btree.h
