Contains actual data. More...

#include <node.h>

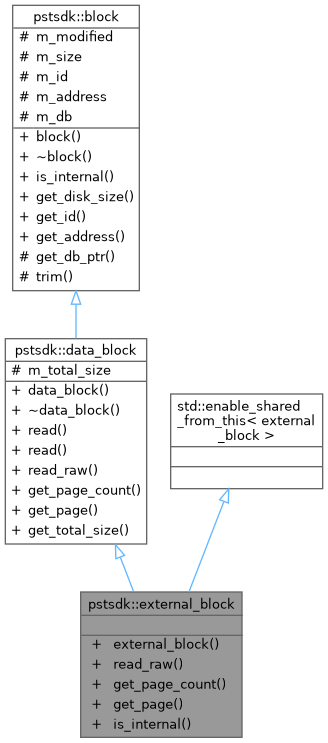

Inheritance diagram for pstsdk::external_block:

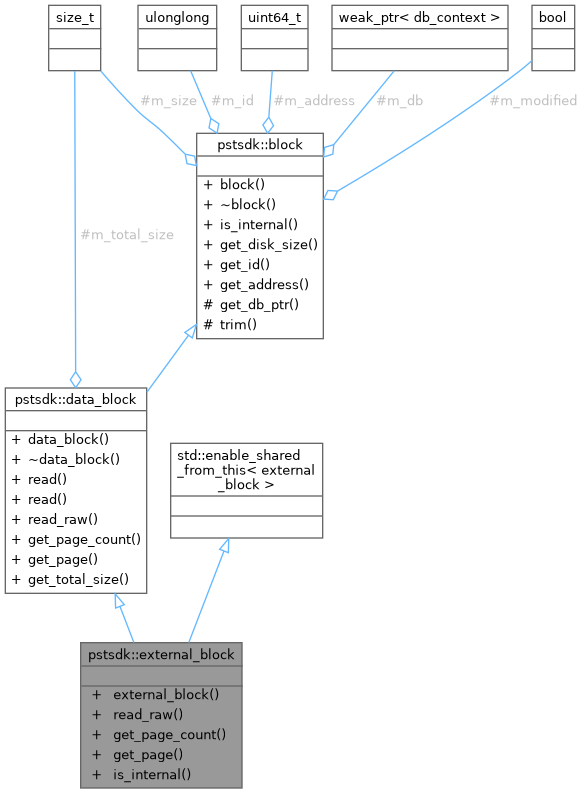

Collaboration diagram for pstsdk::external_block:

Public Member Functions
	external_block (const shared_db_ptr &db, const block_info &info, size_t max_size, std::vector< byte > buffer)
	Construct an external_block from disk.

size_t	read_raw (byte *pdest_buffer, size_t size, ulong offset) const
	Read data from this block.

uint	get_page_count () const
	Get the number of physical pages in this data_block.

std::shared_ptr< external_block >	get_page (uint page_num) const
	Get a specific page of this data_block.

bool	is_internal () const
	Returns the blocks internal/external state.

Public Member Functions inherited from pstsdk::data_block
	data_block (const shared_db_ptr &db, const block_info &info, size_t total_size)
	Constructor for a data_block.

virtual	~data_block ()

size_t	read (std::vector< byte > &buffer, ulong offset) const
	Read data from this block.

template<typename T >
T	read (ulong offset) const
	Read data from this block.

size_t	get_total_size () const
	Get the total logical size of this block.

Public Member Functions inherited from pstsdk::block
	block (const shared_db_ptr &db, const block_info &info)
	Basic block constructor.

virtual	~block ()

size_t	get_disk_size () const
	Get the last known size of this block on disk.

block_id	get_id () const
	Get the block_id of this block.

ulonglong	get_address () const
	Get the address of this block on disk.

Additional Inherited Members
Protected Member Functions inherited from pstsdk::block
shared_db_ptr	get_db_ptr () const

virtual void	trim ()

Protected Attributes inherited from pstsdk::data_block
size_t	m_total_size
	the total or logical size (sum of all external child blocks)

Protected Attributes inherited from pstsdk::block
bool	m_modified
	True if this block has been modified and needs to be saved.

size_t	m_size
	The size of this specific block on disk at last save.

block_id	m_id
	The id of this block.

ulonglong	m_address
	The address of this specific block on disk, 0 if unknown.

weak_db_ptr	m_db

Detailed Description

Contains actual data.

An external_block contains the actual data contents used by the higher layers. This data is also "encrypted", although the encryption/decryption process occurs immediately before/after going to disk, not here.

See also: [MS-PST] 2.2.2.8.3.1

Definition at line 705 of file node.h.

Constructor & Destructor Documentation

◆ external_block()

pstsdk::external_block::external_block	(	const shared_db_ptr &	db,
		const block_info &	info,
		size_t	max_size,
		std::vector< byte >	buffer
	)

inline

Construct an external_block from disk.

Parameters

[in]	db	The database context
[in]	info	Information about this block
[in]	max_size	The maximum possible size of this block
[in]	buffer	The actual external data (decoded)

Definition at line 716 of file node.h.

Member Function Documentation

◆ get_page()

std::shared_ptr< pstsdk::external_block > pstsdk::external_block::get_page ( uint page_num ) const

inlinevirtual

Get a specific page of this data_block.

Note: In this context, "page" refers to an external_block

Exceptions

out_of_range If page_num >= get_page_count()

Parameters

[in] page_num The ordinal of the external_block to get, zero based

Returns: The requested external_block

Implements pstsdk::data_block.

Definition at line 1169 of file node.h.

◆ get_page_count()

uint pstsdk::external_block::get_page_count ( ) const

inlinevirtual

Get the number of physical pages in this data_block.

Note: In this context, "page" refers to an external_block

Returns: The total number of external_blocks under this data_block

Implements pstsdk::data_block.

Definition at line 735 of file node.h.

◆ is_internal()

bool pstsdk::external_block::is_internal ( ) const

inlinevirtual

Returns the blocks internal/external state.

Returns: true if this is an internal block, false otherwise

Implements pstsdk::block.

Definition at line 742 of file node.h.

◆ read_raw()

size_t pstsdk::external_block::read_raw	(	byte *	pdest_buffer,
		size_t	size,
		ulong	offset
	)		const

inlinevirtual

Read data from this block.

Parameters

[out]	pdest_buffer	The location to read the data into
[in]	size	The amount of data to read
[in]	offset	The location to read from

Returns: The amount of data read

Implements pstsdk::data_block.

Definition at line 1177 of file node.h.

The documentation for this class was generated from the following file:

pstsdk/ndb/node.h
