A block which contains information about subnodes. More...

#include <node.h>

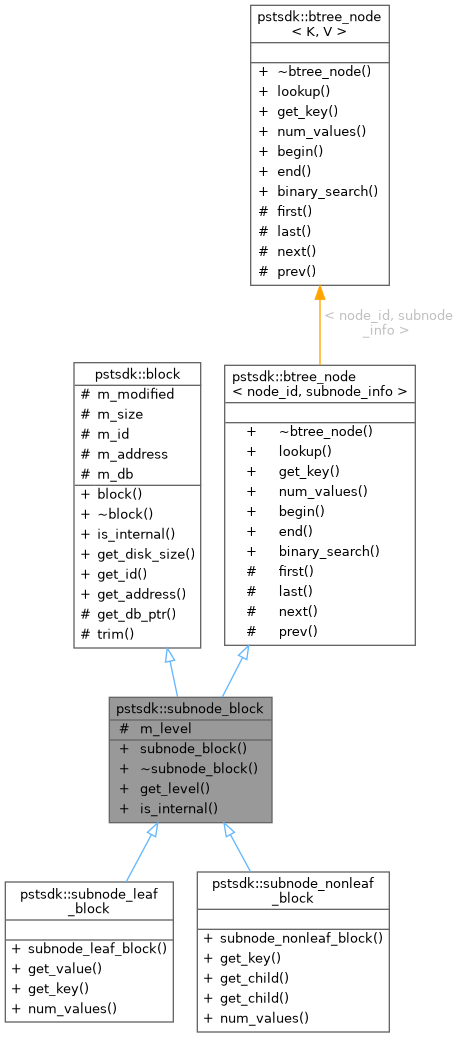

Inheritance diagram for pstsdk::subnode_block:

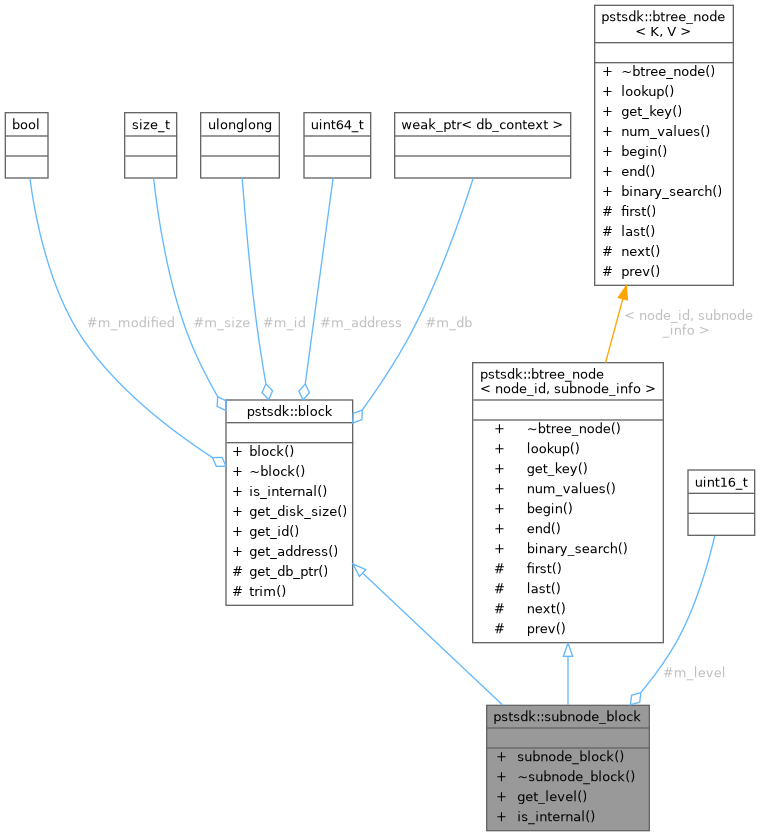

Collaboration diagram for pstsdk::subnode_block:

Public Member Functions
	subnode_block (const shared_db_ptr &db, const block_info &info, ushort level)
	Construct a block from disk.

virtual	~subnode_block ()

ushort	get_level () const
	Get the level of this subnode_block.

bool	is_internal () const
	Returns the blocks internal/external state.

Public Member Functions inherited from pstsdk::block
	block (const shared_db_ptr &db, const block_info &info)
	Basic block constructor.

virtual	~block ()

size_t	get_disk_size () const
	Get the last known size of this block on disk.

block_id	get_id () const
	Get the block_id of this block.

ulonglong	get_address () const
	Get the address of this block on disk.

Public Member Functions inherited from pstsdk::btree_node< node_id, subnode_info >
virtual	~btree_node ()

virtual const subnode_info &	lookup (const node_id &key) const=0
	Looks up the associated value for a given key.

virtual const node_id &	get_key (uint pos) const=0
	Returns the key at the specified position.

virtual uint	num_values () const=0
	Returns the number of entries in this btree_node.

const_iterator	begin () const
	Returns a STL style iterator positioned at the first entry.

const_iterator	end () const
	Returns a STL style iterator positioned at the "end" entry.

int	binary_search (const node_id &key) const
	Performs a binary search over the keys of this btree_node.

Protected Attributes
ushort	m_level
	Level of this subnode_block.

Protected Attributes inherited from pstsdk::block
bool	m_modified
	True if this block has been modified and needs to be saved.

size_t	m_size
	The size of this specific block on disk at last save.

block_id	m_id
	The id of this block.

ulonglong	m_address
	The address of this specific block on disk, 0 if unknown.

weak_db_ptr	m_db

Additional Inherited Members
Public Types inherited from pstsdk::btree_node< node_id, subnode_info >
typedef const_btree_node_iter< node_id, subnode_info >	const_iterator

Protected Member Functions inherited from pstsdk::block
shared_db_ptr	get_db_ptr () const

virtual void	trim ()

Protected Member Functions inherited from pstsdk::btree_node< node_id, subnode_info >
virtual void	first (btree_iter_impl< node_id, subnode_info > &iter) const=0
	Positions the iterator at the first element on this tree.

virtual void	last (btree_iter_impl< node_id, subnode_info > &iter) const=0
	Positions the iterator at the "end" element.

virtual void	next (btree_iter_impl< node_id, subnode_info > &iter) const=0
	Moves the iterator to the next element.

virtual void	prev (btree_iter_impl< node_id, subnode_info > &iter) const=0
	Moves the iterator to the previous element.

Detailed Description

A block which contains information about subnodes.

Subnode blocks form a sort of "private NBT" for a node. This class is the root class of that hierarchy, with child classes for the leaf and non-leaf versions of a subnode block.

This hierarchy also models the btree_node structure, inheriting the actual iteration and lookup logic.

See also: [MS-PST] 2.2.2.8.3.3

Definition at line 764 of file node.h.

Constructor & Destructor Documentation

◆ subnode_block()

pstsdk::subnode_block::subnode_block	(	const shared_db_ptr &	db,
		const block_info &	info,
		ushort	level
	)

inline

Construct a block from disk.

Parameters

[in]	db	The database context
[in]	info	Information about this block
[in]	level	The level of this subnode_block (0 or 1)

Definition at line 773 of file node.h.

◆ ~subnode_block()

virtual pstsdk::subnode_block::~subnode_block ( )

inlinevirtual

Definition at line 776 of file node.h.

Member Function Documentation

◆ get_level()

ushort pstsdk::subnode_block::get_level ( ) const

inline

Get the level of this subnode_block.

Returns: 0 for a leaf block, 1 otherwise

Definition at line 780 of file node.h.

◆ is_internal()

bool pstsdk::subnode_block::is_internal ( ) const

inlinevirtual

Returns the blocks internal/external state.

Returns: true if this is an internal block, false otherwise

Implements pstsdk::block.

Definition at line 782 of file node.h.

Member Data Documentation

◆ m_level

ushort pstsdk::subnode_block::m_level

protected

Level of this subnode_block.

Definition at line 785 of file node.h.

The documentation for this class was generated from the following file:

pstsdk/ndb/node.h
