ANSI store version of the extended block. More...

#include <disk.h>

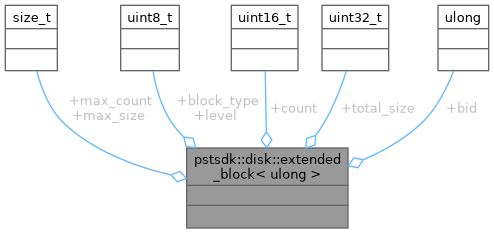

Collaboration diagram for pstsdk::disk::extended_block< ulong >:

Public Types
typedef ulong	block_id_disk

Public Attributes
byte	block_type

byte	level

ushort	count

ulong	total_size

block_id_disk	bid [1]

Static Public Attributes
static const size_t	max_count = ((4096L) - sizeof(block_trailer<ulong>) - 8) / sizeof(extended_block<ulong>::block_id_disk)

static const size_t	max_size = external_block<ulong>::max_size * extended_block<ulong>::max_count

Detailed Description

ANSI store version of the extended block.

See the Unicode version for details. The ANSI version has a different max_count calcuation.

See also: [MS-PST] 2.2.2.8.3.2.1; [MS-PST] 2.2.2.8.3.2.2

Definition at line 1105 of file disk.h.

Member Typedef Documentation

◆ block_id_disk

typedef ulong pstsdk::disk::extended_block< ulong >::block_id_disk

Definition at line 1107 of file disk.h.

Member Data Documentation

◆ bid

block_id_disk pstsdk::disk::extended_block< ulong >::bid[1]

Definition at line 1116 of file disk.h.

◆ block_type

byte pstsdk::disk::extended_block< ulong >::block_type

Definition at line 1112 of file disk.h.

◆ count

ushort pstsdk::disk::extended_block< ulong >::count

Definition at line 1114 of file disk.h.

◆ level

byte pstsdk::disk::extended_block< ulong >::level

Definition at line 1113 of file disk.h.

◆ max_count

const size_t pstsdk::disk::extended_block< ulong >::max_count = ((4096L) - sizeof(block_trailer<ulong>) - 8) / sizeof(extended_block<ulong>::block_id_disk)

static

Definition at line 1109 of file disk.h.

◆ max_size

const size_t pstsdk::disk::extended_block< ulong >::max_size = external_block<ulong>::max_size * extended_block<ulong>::max_count

static

Definition at line 1110 of file disk.h.

◆ total_size

ulong pstsdk::disk::extended_block< ulong >::total_size

Definition at line 1115 of file disk.h.

The documentation for this struct was generated from the following file:

pstsdk/disk/disk.h
