A data block which refers to other data blocks, in order to extend the physical size limit (8k) to a larger logical size. More...

#include <node.h>

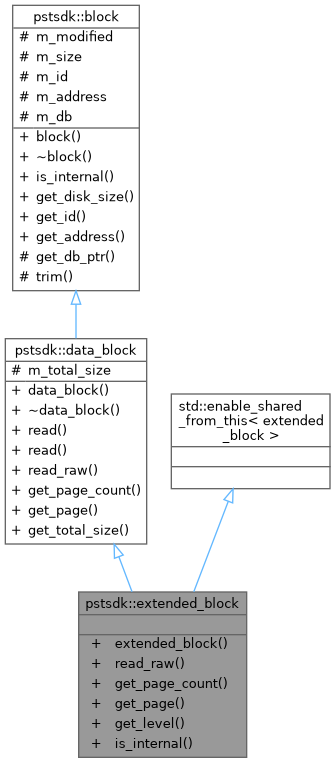

Inheritance diagram for pstsdk::extended_block:

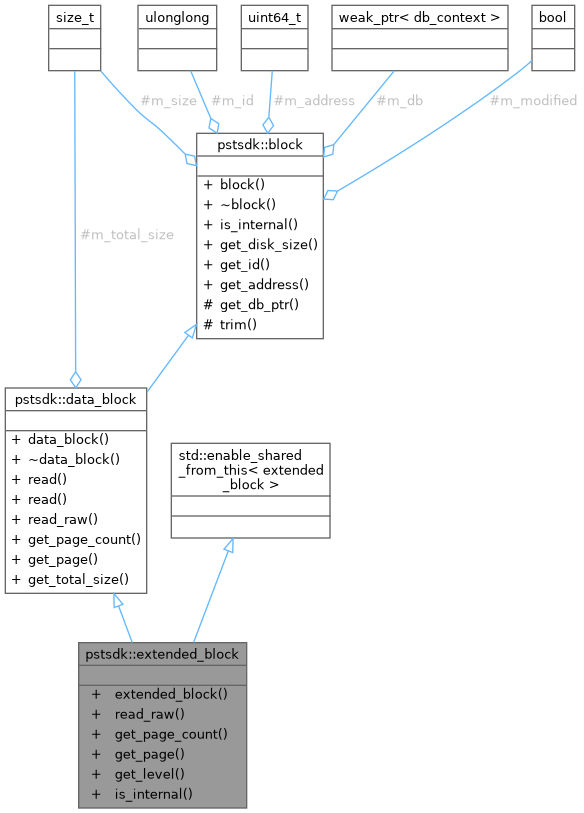

Collaboration diagram for pstsdk::extended_block:

Public Member Functions
	extended_block (const shared_db_ptr &db, const block_info &info, ushort level, size_t total_size, size_t child_max_total_size, ulong page_max_count, ulong child_page_max_count, std::vector< block_id > bi)
	Construct an extended_block from disk.

size_t	read_raw (byte *pdest_buffer, size_t size, ulong offset) const
	Read data from this block.

uint	get_page_count () const
	Get the number of physical pages in this data_block.

std::shared_ptr< external_block >	get_page (uint page_num) const
	Get a specific page of this data_block.

ushort	get_level () const
	Get the "level" of this extended_block.

bool	is_internal () const
	Returns the blocks internal/external state.

Public Member Functions inherited from pstsdk::data_block
	data_block (const shared_db_ptr &db, const block_info &info, size_t total_size)
	Constructor for a data_block.

virtual	~data_block ()

size_t	read (std::vector< byte > &buffer, ulong offset) const
	Read data from this block.

template<typename T >
T	read (ulong offset) const
	Read data from this block.

size_t	get_total_size () const
	Get the total logical size of this block.

Public Member Functions inherited from pstsdk::block
	block (const shared_db_ptr &db, const block_info &info)
	Basic block constructor.

virtual	~block ()

size_t	get_disk_size () const
	Get the last known size of this block on disk.

block_id	get_id () const
	Get the block_id of this block.

ulonglong	get_address () const
	Get the address of this block on disk.

Additional Inherited Members
Protected Member Functions inherited from pstsdk::block
shared_db_ptr	get_db_ptr () const

virtual void	trim ()

Protected Attributes inherited from pstsdk::data_block
size_t	m_total_size
	the total or logical size (sum of all external child blocks)

Protected Attributes inherited from pstsdk::block
bool	m_modified
	True if this block has been modified and needs to be saved.

size_t	m_size
	The size of this specific block on disk at last save.

block_id	m_id
	The id of this block.

ulonglong	m_address
	The address of this specific block on disk, 0 if unknown.

weak_db_ptr	m_db

Detailed Description

A data block which refers to other data blocks, in order to extend the physical size limit (8k) to a larger logical size.

An extended_block is essentially a list of block_ids of other data_block, which themselves may be an extended_block or an external_block. Ultimately they form a "data tree", the leafs of which form the "logical" contents of the block.

This class is an in memory representation of the disk::extended_block structure.

See also: [MS-PST] 2.2.2.8.3.2

Definition at line 626 of file node.h.

Constructor & Destructor Documentation

◆ extended_block()

pstsdk::extended_block::extended_block	(	const shared_db_ptr &	db,
		const block_info &	info,
		ushort	level,
		size_t	total_size,
		size_t	child_max_total_size,
		ulong	page_max_count,
		ulong	child_page_max_count,
		std::vector< block_id >	bi
	)

inline

Construct an extended_block from disk.

Parameters

[in]	db	The database context
[in]	info	Information about this block
[in]	level	The level of this extended block (1 or 2)
[in]	total_size	The total logical size of this block
[in]	child_max_total_size	The maximum logical size of a child block
[in]	page_max_count	The maximum number of external blocks that can be contained in this block
[in]	child_page_max_count	The maximum number of external blocks that can be contained in a child block
[in]	bi	The block_info for all child blocks

Definition at line 641 of file node.h.

Member Function Documentation

◆ get_level()

ushort pstsdk::extended_block::get_level ( ) const

inline

Get the "level" of this extended_block.

A level 1 extended_block (or "xblock") points to external blocks. A level 2 extended_block (or "xxblock") points to other extended_blocks

Returns: 1 for an xblock, 2 for an xxblock

Definition at line 679 of file node.h.

◆ get_page()

std::shared_ptr< pstsdk::external_block > pstsdk::extended_block::get_page ( uint page_num ) const

inlinevirtual

Get a specific page of this data_block.

Note: In this context, "page" refers to an external_block

Exceptions

out_of_range If page_num >= get_page_count()

Parameters

[in] page_num The ordinal of the external_block to get, zero based

Returns: The requested external_block

Implements pstsdk::data_block.

Definition at line 1163 of file node.h.

◆ get_page_count()

pstsdk::uint pstsdk::extended_block::get_page_count ( ) const

inlinevirtual

Get the number of physical pages in this data_block.

Note: In this context, "page" refers to an external_block

Returns: The total number of external_blocks under this data_block

Implements pstsdk::data_block.

Definition at line 1117 of file node.h.

◆ is_internal()

bool pstsdk::extended_block::is_internal ( ) const

inlinevirtual

Returns the blocks internal/external state.

Returns: true if this is an internal block, false otherwise

Implements pstsdk::block.

Definition at line 680 of file node.h.

◆ read_raw()

size_t pstsdk::extended_block::read_raw	(	byte *	pdest_buffer,
		size_t	size,
		ulong	offset
	)		const

inlinevirtual

Read data from this block.

Parameters

[out]	pdest_buffer	The location to read the data into
[in]	size	The amount of data to read
[in]	offset	The location to read from

Returns: The amount of data read

Implements pstsdk::data_block.

Definition at line 1222 of file node.h.

The documentation for this class was generated from the following file:

pstsdk/ndb/node.h
