Unicode store version of the extended block. More...

#include <disk.h>

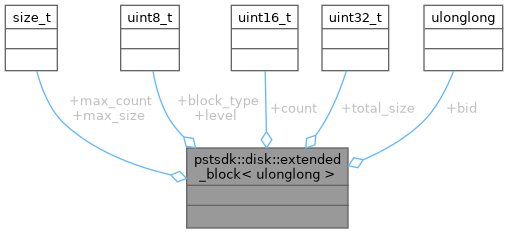

Collaboration diagram for pstsdk::disk::extended_block< ulonglong >:

Public Types
typedef ulonglong	block_id_disk

Public Attributes
byte	block_type
	Always block_type_extended.

byte	level
	If zero, this block points to external blocks. If one, this block points to level zero extended blocks.

ushort	count
	Number of entries in the bid array.

ulong	total_size
	Total logical size of this block.

block_id_disk	bid [1]
	Array of blocks this block points to.

Static Public Attributes
static const size_t	max_count = (external_block<ulonglong>::max_size - 8) / sizeof(extended_block<ulonglong>::block_id_disk)

static const size_t	max_size = external_block<ulonglong>::max_size * extended_block<ulonglong>::max_count

Detailed Description

Unicode store version of the extended block.

Extended blocks are a way of extended the logical size of a block. It contains references to other blocks (which themselves may be extended blocks). This block can logically be thought of as the concatenation of the blocks it points to. Extended blocks begin with a header. Note the first byte of this header is the block_type - a property shared with the sub_block.

See also: [MS-PST] 2.2.2.8.3.2.1; [MS-PST] 2.2.2.8.3.2.2

Definition at line 1105 of file disk.h.

Member Typedef Documentation

◆ block_id_disk

typedef ulonglong pstsdk::disk::extended_block< ulonglong >::block_id_disk

Definition at line 1107 of file disk.h.

Member Data Documentation

◆ bid

block_id_disk pstsdk::disk::extended_block< ulonglong >::bid[1]

Array of blocks this block points to.

Definition at line 1116 of file disk.h.

◆ block_type

byte pstsdk::disk::extended_block< ulonglong >::block_type

Always block_type_extended.

Definition at line 1112 of file disk.h.

◆ count

ushort pstsdk::disk::extended_block< ulonglong >::count

Number of entries in the bid array.

Definition at line 1114 of file disk.h.

◆ level

byte pstsdk::disk::extended_block< ulonglong >::level

If zero, this block points to external blocks. If one, this block points to level zero extended blocks.

Definition at line 1113 of file disk.h.

◆ max_count

const size_t pstsdk::disk::extended_block< ulonglong >::max_count = (external_block<ulonglong>::max_size - 8) / sizeof(extended_block<ulonglong>::block_id_disk)

static

Definition at line 1109 of file disk.h.

◆ max_size

const size_t pstsdk::disk::extended_block< ulonglong >::max_size = external_block<ulonglong>::max_size * extended_block<ulonglong>::max_count

static

Definition at line 1110 of file disk.h.

◆ total_size

ulong pstsdk::disk::extended_block< ulonglong >::total_size

Total logical size of this block.

Definition at line 1115 of file disk.h.

The documentation for this struct was generated from the following file:

pstsdk/disk/disk.h
