pstsdk::disk::nbt_leaf_page< T > Struct Template Reference

NBT leaf page. More...

#include <disk.h>

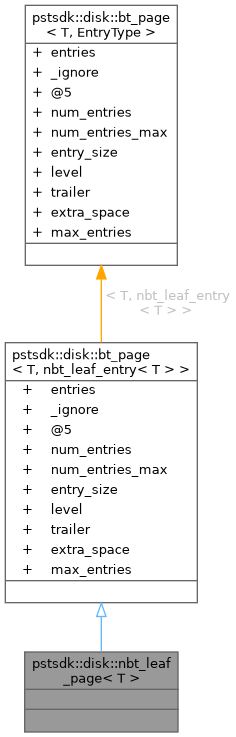

Inheritance diagram for pstsdk::disk::nbt_leaf_page< T >:

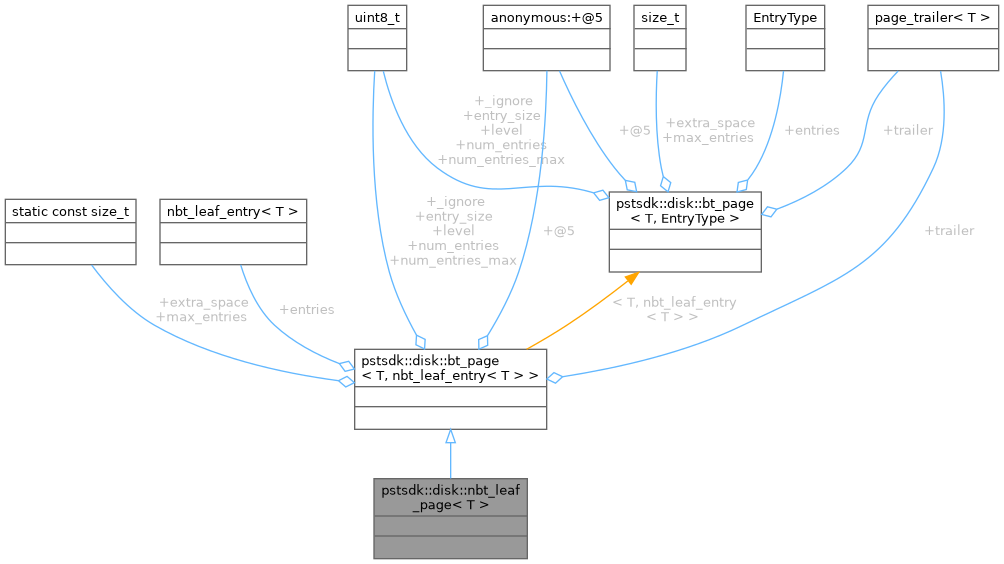

Collaboration diagram for pstsdk::disk::nbt_leaf_page< T >:

Additional Inherited Members
Public Attributes inherited from pstsdk::disk::bt_page< T, nbt_leaf_entry< T > >
nbt_leaf_entry< T >	entries [max_entries]
byte	_ignore [extra_space]
union {
EntryType   entries [max_entries]
byte   _ignore [extra_space]
};
byte	num_entries
	Number of entries on this page.
byte	num_entries_max
	Maximum number of entries on this page.
byte	entry_size
	The size of each entry.
byte	level
	The level of this page. A level of zero indicates a leaf.
page_trailer< T >	trailer
	The page trailer.
Static Public Attributes inherited from pstsdk::disk::bt_page< T, nbt_leaf_entry< T > >
static const size_t	extra_space
static const size_t	max_entries
	Maximum number of entries on a page.

Detailed Description

template<typename T>
struct pstsdk::disk::nbt_leaf_page< T >

NBT leaf page.

A BTree page instance. The NBT leaf page has an array of nbt_leaf_entries ordered by node id, which describe the nodes of the database.

Template Parameters

T	ulonglong for a unicode store, ulong for an ANSI store

See also

[MS-PST] 2.2.2.7.7.1

Definition at line 899 of file disk.h.

---

The documentation for this struct was generated from the following file:

• pstsdk/disk/disk.h
