pstsdk::const_property_object Class Reference

Property object base class. More...

#include <object.h>

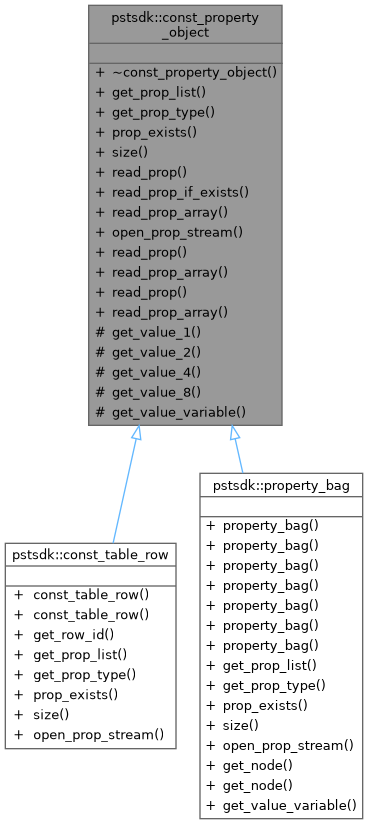

Inheritance diagram for pstsdk::const_property_object:

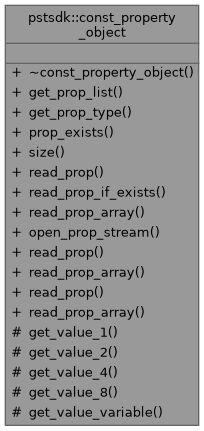

Collaboration diagram for pstsdk::const_property_object:

Public Member Functions
virtual	~const_property_object ()
virtual std::vector< prop_id >	get_prop_list () const =0
	Get a list of all properties on this object.
virtual prop_type	get_prop_type (prop_id id) const =0
	Get the property type of a given prop_id.
virtual bool	prop_exists (prop_id id) const =0
	Indicates the existance of a given property on this object.
virtual size_t	size (prop_id id) const =0
	Returns the total size of a variable length property.
template<typename T >
T	read_prop (prop_id id) const
	Read a property as a given type.
template<typename T >
std::optional< T >	read_prop_if_exists (prop_id id) const
	Read a property as a given type, if it exists.
template<typename T >
std::vector< T >	read_prop_array (prop_id id) const
	Read a property as an array of the given type.
virtual hnid_stream_device	open_prop_stream (prop_id id)=0
	Creates a stream device over a property on this object.
template<>
bool	read_prop (prop_id id) const
template<>
std::vector< bool >	read_prop_array (prop_id id) const
template<>
time_t	read_prop (prop_id id) const
template<>
std::vector< time_t >	read_prop_array (prop_id id) const

Protected Member Functions
virtual byte	get_value_1 (prop_id id) const =0
	Implemented by child classes to fetch a 1 byte sized property.
virtual ushort	get_value_2 (prop_id id) const =0
	Implemented by child classes to fetch a 2 byte sized property.
virtual ulong	get_value_4 (prop_id id) const =0
	Implemented by child classes to fetch a 4 byte sized property.
virtual ulonglong	get_value_8 (prop_id id) const =0
	Implemented by child classes to fetch a 8 byte sized property.
virtual std::vector< byte >	get_value_variable (prop_id id) const =0
	Implemented by child classes to fetch a variable sized property.

Detailed Description

Property object base class.

This class provides a simple interface (using templates) to access properties on an object. It defines a handful of virtual functions child classes implement to read the raw data.

This class is contains all the conversion logic between the different types, implemented as template specializations, and other property logic such as multivalued property parsing.

Definition at line 93 of file object.h.

Constructor & Destructor Documentation

~const_property_object()

virtual pstsdk::const_property_object::~const_property_object ( )

inlinevirtual

Definition at line 96 of file object.h.

Member Function Documentation

get_prop_list()

virtual std::vector< prop_id > pstsdk::const_property_object::get_prop_list ( ) const

pure virtual

Get a list of all properties on this object.

Returns

A vector of all properties on this object

Implemented in pstsdk::property_bag, and pstsdk::const_table_row.

get_prop_type()

virtual prop_type pstsdk::const_property_object::get_prop_type ( prop_id  id ) const

pure virtual

Get the property type of a given prop_id.

Parameters

[in]

id

The prop_id

Exceptions

key_not_found<prop_id>

If the specified property is not present

Returns

The type of the prop_id

Implemented in pstsdk::property_bag, and pstsdk::const_table_row.

get_value_1()

virtual byte pstsdk::const_property_object::get_value_1 ( prop_id  id ) const

protectedpure virtual

Implemented by child classes to fetch a 1 byte sized property.

get_value_2()

virtual ushort pstsdk::const_property_object::get_value_2 ( prop_id  id ) const

protectedpure virtual

Implemented by child classes to fetch a 2 byte sized property.

get_value_4()

virtual ulong pstsdk::const_property_object::get_value_4 ( prop_id  id ) const

protectedpure virtual

Implemented by child classes to fetch a 4 byte sized property.

get_value_8()

virtual ulonglong pstsdk::const_property_object::get_value_8 ( prop_id  id ) const

protectedpure virtual

Implemented by child classes to fetch a 8 byte sized property.

get_value_variable()

virtual std::vector< byte > pstsdk::const_property_object::get_value_variable ( prop_id  id ) const

protectedpure virtual

Implemented by child classes to fetch a variable sized property.

Implemented in pstsdk::property_bag.

open_prop_stream()

virtual hnid_stream_device pstsdk::const_property_object::open_prop_stream ( prop_id  id )

pure virtual

Creates a stream device over a property on this object.

The returned stream device can be used to construct a proper stream:

const_property_object* po = ...;
prop_stream nstream(po->open_prop_stream(0x3001));

Which can then be used as any iostream would be.

Note

This is operation is only valid for variable length properties

Parameters

[in]

id

The prop_id

Exceptions

key_not_found<prop_id>

If the specified property is not present

Returns

A stream device for the requested property

Implemented in pstsdk::property_bag, and pstsdk::const_table_row.

prop_exists()

virtual bool pstsdk::const_property_object::prop_exists ( prop_id  id ) const

pure virtual

Indicates the existance of a given property on this object.

Parameters

[in]

id

The prop_id

Returns

true if the property exists

Implemented in pstsdk::property_bag, and pstsdk::const_table_row.

read_prop() [1/3]

template<typename T >

T pstsdk::const_property_object::read_prop ( prop_id  id ) const

inline

Read a property as a given type.

It is the callers responsibility to ensure the prop_id is of or convertable to the requested type.

Template Parameters

T	The type to interpret he property as

Parameters

[in]

id

The prop_id

Exceptions

key_not_found<prop_id>

If the specified property is not present

Returns

The property value

Definition at line 188 of file object.h.

read_prop() [2/3]

template<>

bool pstsdk::const_property_object::read_prop ( prop_id  id ) const

inline

Definition at line 240 of file object.h.

read_prop() [3/3]

template<>

time_t pstsdk::const_property_object::read_prop ( prop_id  id ) const

inline

Definition at line 262 of file object.h.

read_prop_array() [1/3]

template<typename T >

std::vector< T > pstsdk::const_property_object::read_prop_array ( prop_id  id ) const

inline

Read a property as an array of the given type.

It is the callers responsibility to ensure the prop_id is of or convertable to the requested type.

Template Parameters

T	The type to interpret he property as

Parameters

[in]

id

The prop_id

Exceptions

key_not_found<prop_id>

If the specified property is not present

Returns

A vector of the property values

See also

[MS-PST] 2.3.3.4

Definition at line 224 of file object.h.

read_prop_array() [2/3]

template<>

std::vector< bool > pstsdk::const_property_object::read_prop_array ( prop_id  id ) const

inline

Definition at line 240 of file object.h.

read_prop_array() [3/3]

template<>

std::vector< time_t > pstsdk::const_property_object::read_prop_array ( prop_id  id ) const

inline

Definition at line 262 of file object.h.

read_prop_if_exists()

template<typename T >

std::optional< T > pstsdk::const_property_object::read_prop_if_exists

(

prop_id

id

)

const

Read a property as a given type, if it exists.

It is the callers responsibility to ensure the prop_id is of or convertable to the requested type.

Template Parameters

T	The type to interpret he property as

Parameters

[in]

id

The prop_id

Exceptions

key_not_found<prop_id>

If the specified property is not present

Returns

The property value

Definition at line 309 of file object.h.

size()

virtual size_t pstsdk::const_property_object::size ( prop_id  id ) const

pure virtual

Returns the total size of a variable length property.

Note

This operation is only valid for variable length properties

Parameters

[in]

id

The prop_id

Returns

The vector.size() if read_prop was called for this prop

Implemented in pstsdk::property_bag, and pstsdk::const_table_row.

---

The documentation for this class was generated from the following file:

• pstsdk/ltp/object.h
