Property Context (PC) Implementation. More...

#include <propbag.h>

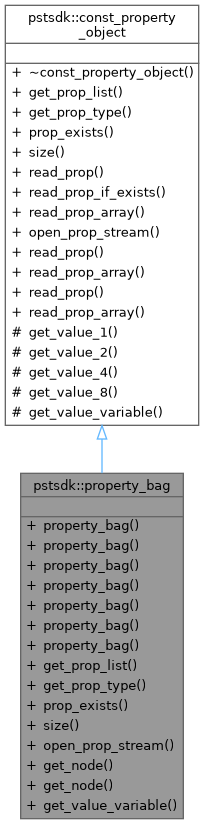

Inheritance diagram for pstsdk::property_bag:

Collaboration diagram for pstsdk::property_bag:

Public Member Functions
	property_bag (const node &n)
	Construct a property_bag from this node.

	property_bag (const node &n, alias_tag)
	Construct a property_bag from this node.

	property_bag (const heap &h)
	Construct a property_bag from this heap.

	property_bag (const heap &h, alias_tag)
	Construct a property_bag from this heap.

	property_bag (const property_bag &other)
	Copy construct a property_bag.

	property_bag (const property_bag &other, alias_tag)
	Alias a property_bag.

	property_bag (property_bag &&other)
	Move construct a property_bag.

std::vector< prop_id >	get_prop_list () const
	Get a list of all properties on this object.

prop_type	get_prop_type (prop_id id) const
	Get the property type of a given prop_id.

bool	prop_exists (prop_id id) const
	Indicates the existance of a given property on this object.

size_t	size (prop_id id) const
	Returns the total size of a variable length property.

hnid_stream_device	open_prop_stream (prop_id id)
	Creates a stream device over a property on this object.

const node &	get_node () const
	Get the node underlying this property_bag.

node &	get_node ()
	Get the node underlying this property_bag.

std::vector< byte >	get_value_variable (prop_id id) const
	Implemented by child classes to fetch a variable sized property.

Public Member Functions inherited from pstsdk::const_property_object
virtual	~const_property_object ()

template<typename T >
T	read_prop (prop_id id) const
	Read a property as a given type.

template<typename T >
std::optional< T >	read_prop_if_exists (prop_id id) const
	Read a property as a given type, if it exists.

template<typename T >
std::vector< T >	read_prop_array (prop_id id) const
	Read a property as an array of the given type.

template<>
bool	read_prop (prop_id id) const

template<>
std::vector< bool >	read_prop_array (prop_id id) const

template<>
time_t	read_prop (prop_id id) const

template<>
std::vector< time_t >	read_prop_array (prop_id id) const

Additional Inherited Members

Detailed Description

Property Context (PC) Implementation.

A Property Context is simply a BTH where the BTH is stored as the client root allocation in the heap. The BTH contains a "prop_entry", which is defines the type of the property and it's storage.

const_property_object does most of the heavy lifting in terms of property access and interpretation.

See also: [MS-PST] 2.3.3

Definition at line 40 of file propbag.h.

Constructor & Destructor Documentation

◆ property_bag() [1/7]

pstsdk::property_bag::property_bag ( const node & n )

inlineexplicit

Construct a property_bag from this node.

Parameters

[in] n The node to copy and interpret as a property_bag

Definition at line 101 of file propbag.h.

◆ property_bag() [2/7]

pstsdk::property_bag::property_bag	(	const node &	n,
		alias_tag
	)

inline

Construct a property_bag from this node.

Parameters

[in] n The node to alias and interpret as a property_bag

Definition at line 108 of file propbag.h.

◆ property_bag() [3/7]

pstsdk::property_bag::property_bag ( const heap & h )

inlineexplicit

Construct a property_bag from this heap.

Parameters

[in] h The heap to copy and interpret as a property_bag

Definition at line 115 of file propbag.h.

◆ property_bag() [4/7]

pstsdk::property_bag::property_bag	(	const heap &	h,
		alias_tag
	)

inline

Construct a property_bag from this heap.

Parameters

[in] h The heap to alias and interpret as a property_bag

Definition at line 127 of file propbag.h.

◆ property_bag() [5/7]

pstsdk::property_bag::property_bag ( const property_bag & other )

inline

Copy construct a property_bag.

Parameters

other The property bag to copy

Definition at line 139 of file propbag.h.

◆ property_bag() [6/7]

pstsdk::property_bag::property_bag	(	const property_bag &	other,
		alias_tag
	)

inline

Alias a property_bag.

Parameters

other The property bag to alias

Definition at line 146 of file propbag.h.

◆ property_bag() [7/7]

pstsdk::property_bag::property_bag ( property_bag && other )

inline

Move construct a property_bag.

Parameters

other The property bag to move from

Definition at line 65 of file propbag.h.

Member Function Documentation

◆ get_node() [1/2]

node & pstsdk::property_bag::get_node ( )

inline

Get the node underlying this property_bag.

Returns: The node

Definition at line 80 of file propbag.h.

◆ get_node() [2/2]

const node & pstsdk::property_bag::get_node ( ) const

inline

Get the node underlying this property_bag.

Returns: The node

Definition at line 77 of file propbag.h.

◆ get_prop_list()

std::vector< pstsdk::prop_id > pstsdk::property_bag::get_prop_list ( ) const

inlinevirtual

Get a list of all properties on this object.

Returns: A vector of all properties on this object

Implements pstsdk::const_property_object.

Definition at line 153 of file propbag.h.

◆ get_prop_type()

prop_type pstsdk::property_bag::get_prop_type ( prop_id id ) const

inlinevirtual

Get the property type of a given prop_id.

Parameters

[in] id The prop_id

Exceptions

key_not_found<prop_id> If the specified property is not present

Returns: The type of the prop_id

Implements pstsdk::const_property_object.

Definition at line 69 of file propbag.h.

◆ get_value_variable()

std::vector< pstsdk::byte > pstsdk::property_bag::get_value_variable ( prop_id id ) const

inlinevirtual

Implemented by child classes to fetch a variable sized property.

Implements pstsdk::const_property_object.

Definition at line 203 of file propbag.h.

◆ open_prop_stream()

pstsdk::hnid_stream_device pstsdk::property_bag::open_prop_stream ( prop_id id )

inlinevirtual

Creates a stream device over a property on this object.

The returned stream device can be used to construct a proper stream:

const_property_object* po = ...;

prop_stream nstream(po->open_prop_stream(0x3001));

pstsdk::bth_nonleaf_node

Contains references to other bth_node allocations.

Definition heap.h:364

pstsdk::const_property_object

Property object base class.

Definition object.h:94

pstsdk::prop_stream

boost::iostreams::stream< hnid_stream_device > prop_stream

The actual property stream, defined using the boost iostream library and the hnid_stream_device.

Definition object.h:81

Which can then be used as any iostream would be.

Note: This is operation is only valid for variable length properties

Parameters

[in] id The prop_id

Exceptions

key_not_found<prop_id> If the specified property is not present

Returns: A stream device for the requested property

Implements pstsdk::const_property_object.

Definition at line 233 of file propbag.h.

◆ prop_exists()

bool pstsdk::property_bag::prop_exists ( prop_id id ) const

inlinevirtual

Indicates the existance of a given property on this object.

Parameters

[in] id The prop_id

Returns: true if the property exists

Implements pstsdk::const_property_object.

Definition at line 181 of file propbag.h.

◆ size()

size_t pstsdk::property_bag::size ( prop_id id ) const

inlinevirtual

Returns the total size of a variable length property.

Note: This operation is only valid for variable length properties

Parameters

[in] id The prop_id

Returns: The vector.size() if read_prop was called for this prop

Implements pstsdk::const_property_object.

Definition at line 223 of file propbag.h.

The documentation for this class was generated from the following file:

pstsdk/ltp/propbag.h
