Contains references to subnode_leaf_blocks. More...

#include <node.h>

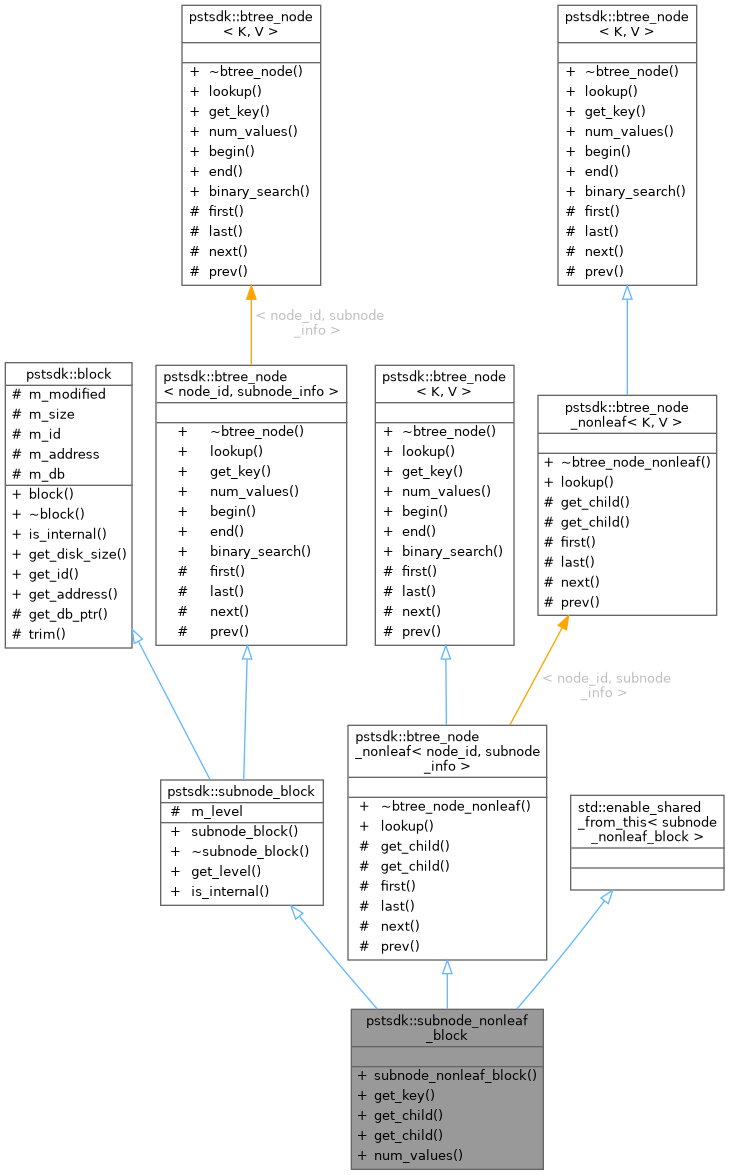

Inheritance diagram for pstsdk::subnode_nonleaf_block:

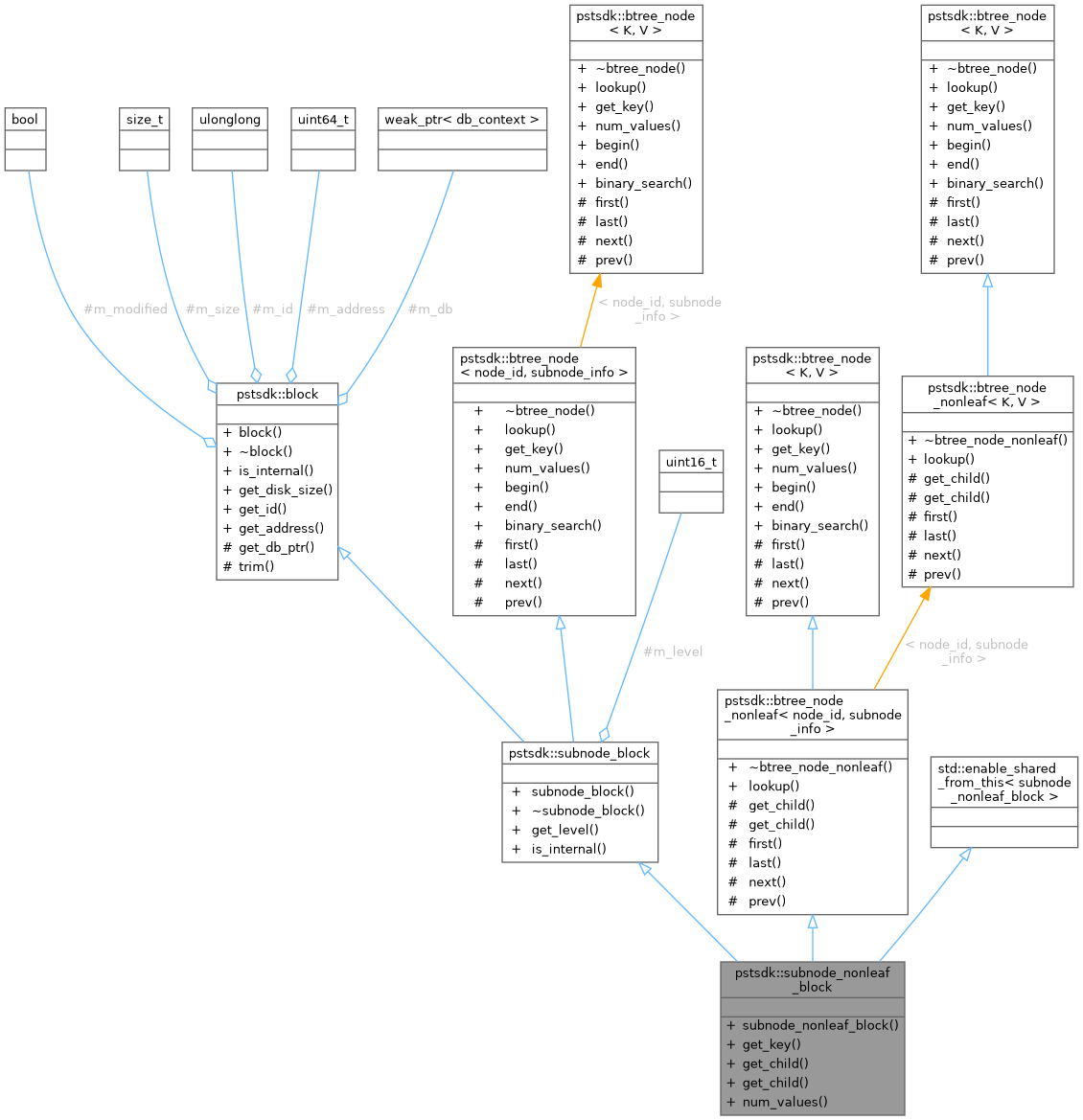

Collaboration diagram for pstsdk::subnode_nonleaf_block:

Public Member Functions
	subnode_nonleaf_block (const shared_db_ptr &db, const block_info &info, std::vector< std::pair< node_id, block_id > > subblocks)
	Construct a subnode_nonleaf_block from disk.

const node_id &	get_key (uint pos) const
	Returns the key at the specified position.

subnode_block *	get_child (uint pos)
	Returns the child btree_node at the requested location.

const subnode_block *	get_child (uint pos) const
	Returns the child btree_node at the requested location.

uint	num_values () const
	Returns the number of entries in this btree_node.

Public Member Functions inherited from pstsdk::subnode_block
	subnode_block (const shared_db_ptr &db, const block_info &info, ushort level)
	Construct a block from disk.

virtual	~subnode_block ()

ushort	get_level () const
	Get the level of this subnode_block.

bool	is_internal () const
	Returns the blocks internal/external state.

Public Member Functions inherited from pstsdk::block
	block (const shared_db_ptr &db, const block_info &info)
	Basic block constructor.

virtual	~block ()

size_t	get_disk_size () const
	Get the last known size of this block on disk.

block_id	get_id () const
	Get the block_id of this block.

ulonglong	get_address () const
	Get the address of this block on disk.

Public Member Functions inherited from pstsdk::btree_node< node_id, subnode_info >
virtual	~btree_node ()

virtual const subnode_info &	lookup (const node_id &key) const=0
	Looks up the associated value for a given key.

const_iterator	begin () const
	Returns a STL style iterator positioned at the first entry.

const_iterator	end () const
	Returns a STL style iterator positioned at the "end" entry.

int	binary_search (const node_id &key) const
	Performs a binary search over the keys of this btree_node.

Public Member Functions inherited from pstsdk::btree_node_nonleaf< node_id, subnode_info >
virtual	~btree_node_nonleaf ()

const subnode_info &	lookup (const node_id &key) const
	Looks up the associated value for a given key.

Public Member Functions inherited from pstsdk::btree_node< K, V >
virtual	~btree_node ()

const_iterator	begin () const
	Returns a STL style iterator positioned at the first entry.

const_iterator	end () const
	Returns a STL style iterator positioned at the "end" entry.

int	binary_search (const K &key) const
	Performs a binary search over the keys of this btree_node.

Additional Inherited Members
Public Types inherited from pstsdk::btree_node< node_id, subnode_info >
typedef const_btree_node_iter< node_id, subnode_info >	const_iterator

Public Types inherited from pstsdk::btree_node< K, V >
typedef const_btree_node_iter< K, V >	const_iterator

Protected Member Functions inherited from pstsdk::block
shared_db_ptr	get_db_ptr () const

virtual void	trim ()

Protected Member Functions inherited from pstsdk::btree_node< node_id, subnode_info >
virtual void	first (btree_iter_impl< node_id, subnode_info > &iter) const=0
	Positions the iterator at the first element on this tree.

virtual void	last (btree_iter_impl< node_id, subnode_info > &iter) const=0
	Positions the iterator at the "end" element.

virtual void	next (btree_iter_impl< node_id, subnode_info > &iter) const=0
	Moves the iterator to the next element.

virtual void	prev (btree_iter_impl< node_id, subnode_info > &iter) const=0
	Moves the iterator to the previous element.

Protected Member Functions inherited from pstsdk::btree_node_nonleaf< node_id, subnode_info >
void	first (btree_iter_impl< node_id, subnode_info > &iter) const
	Positions the iterator at the first element on this tree.

void	last (btree_iter_impl< node_id, subnode_info > &iter) const
	Positions the iterator at the "end" element.

void	next (btree_iter_impl< node_id, subnode_info > &iter) const
	Moves the iterator to the next element.

void	prev (btree_iter_impl< node_id, subnode_info > &iter) const
	Moves the iterator to the previous element.

Protected Attributes inherited from pstsdk::subnode_block
ushort	m_level
	Level of this subnode_block.

Protected Attributes inherited from pstsdk::block
bool	m_modified
	True if this block has been modified and needs to be saved.

size_t	m_size
	The size of this specific block on disk at last save.

block_id	m_id
	The id of this block.

ulonglong	m_address
	The address of this specific block on disk, 0 if unknown.

weak_db_ptr	m_db

Detailed Description

Contains references to subnode_leaf_blocks.

Because of the width of a subnode_leaf_block and the relative scarcity of subnodes, it's actually pretty uncommon to encounter a subnode non-leaf block in practice. But it does occur, typically on large tables.

This is the in memory version of one of these blocks. It forms the node of a tree, similar to the NBT, pointing to child blocks. There can only be one level of these - a subnode_nonleaf_block can not point to other subnode_nonleaf_blocks.

See also: [MS-PST] 2.2.2.8.3.3.2

Definition at line 800 of file node.h.

Constructor & Destructor Documentation

◆ subnode_nonleaf_block()

pstsdk::subnode_nonleaf_block::subnode_nonleaf_block	(	const shared_db_ptr &	db,
		const block_info &	info,
		std::vector< std::pair< node_id, block_id > >	subblocks
	)

inline

Construct a subnode_nonleaf_block from disk.

Parameters

[in]	db	The database context
[in]	info	Information about this block
[in]	subblocks	Information about the child blocks

Definition at line 811 of file node.h.

Member Function Documentation

◆ get_child() [1/2]

pstsdk::subnode_block * pstsdk::subnode_nonleaf_block::get_child ( uint i )

inlinevirtual

Returns the child btree_node at the requested location.

Parameters

[in] i The position at which to get the child

Returns: a non-owning pointer of the child btree_node

Implements pstsdk::btree_node_nonleaf< node_id, subnode_info >.

Definition at line 1040 of file node.h.

◆ get_child() [2/2]

const pstsdk::subnode_block * pstsdk::subnode_nonleaf_block::get_child ( uint i ) const

inlinevirtual

Returns the child btree_node at the requested location.

Parameters

[in] i The position at which to get the child

Returns: a non-owning pointer of the child btree_node

Implements pstsdk::btree_node_nonleaf< node_id, subnode_info >.

Definition at line 1050 of file node.h.

◆ get_key()

const node_id & pstsdk::subnode_nonleaf_block::get_key ( uint pos ) const

inlinevirtual

Returns the key at the specified position.

This is specific to this btree_node, not the entire tree

Parameters

[in] pos The position to retrieve the key for

Returns: The key at the requested position

Implements pstsdk::btree_node< node_id, subnode_info >.

Definition at line 819 of file node.h.

◆ num_values()

uint pstsdk::subnode_nonleaf_block::num_values ( ) const

inlinevirtual

Returns the number of entries in this btree_node.

This is specific to this btree_node, not the entire tree

Returns: The number of keys in this btree_node

Implements pstsdk::btree_node< node_id, subnode_info >.

Definition at line 823 of file node.h.

The documentation for this class was generated from the following file:

pstsdk/ndb/node.h
